ASROCK B650M-HDV M.2 matična ploča
https://www.iscom.rs/images/products/big/98506.jpg https://www.iscom.rs/images/products/big/98502.jpg https://www.iscom.rs/images/products/big/98503.jpg https://www.iscom.rs/images/products/big/98504.jpg

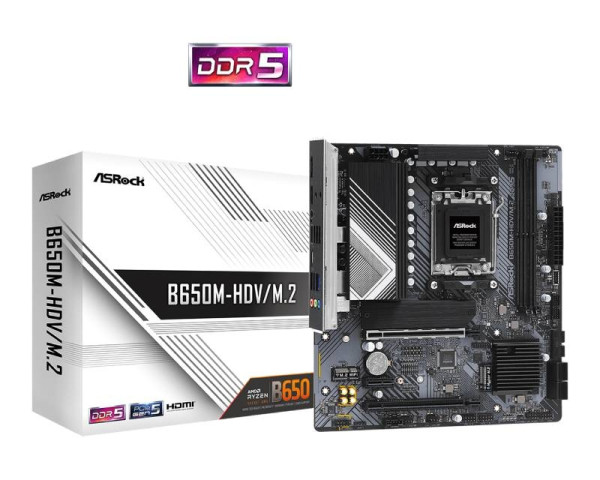

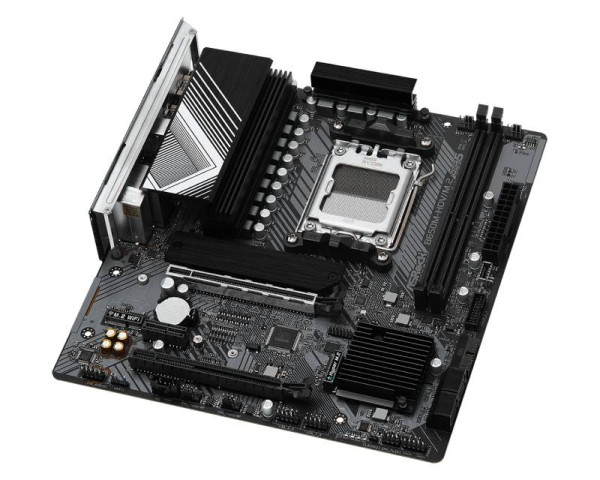

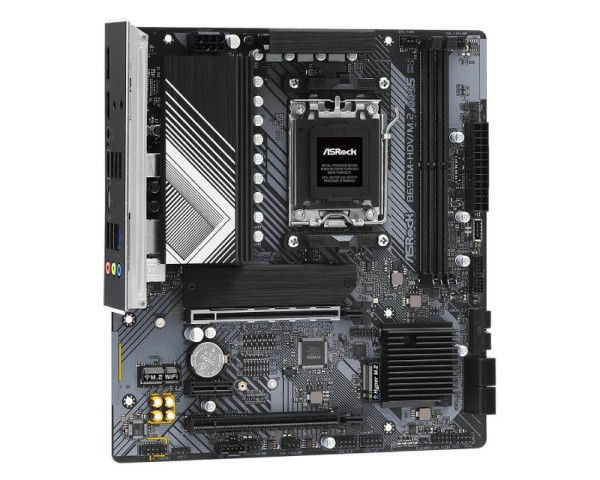

ASROCK B650M-HDV M.2 matična ploča

ASRock
Šifra: 42809
Maloprodajna cena: 15.405,00 rsd.
WebCena: 13.666,00 rsd.
*Cena sa popustom važi za online kupovinu, kao i u prodavnici za plaćanje gotovinom, virmanom (preko računa) ili odmah debitnom karticom.
Broj rata
 Količina
    • CPU
      - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
    • Chipset
      - AMD B650
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 2 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
      - Max. capacity of system memory: 64GB
      - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    • BIOS
      - 256Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
      - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Dragon 2.5G LAN Software
      - Smart Auto Adjust Bandwidth Control
      - Visual User Friendly UI
      - Visual Network Usage Statistics
      - Optimized Default Setting for Game, Browser, and Streaming Modes
      - User Customized Priority Control



  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2 Type-C (Front)
    - 1 x USB 3.2 Gen1 Type-C (Rear)
    - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
    - 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header

    *CPU_FAN1 supports the fan power up to 1A (12W).

    **CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

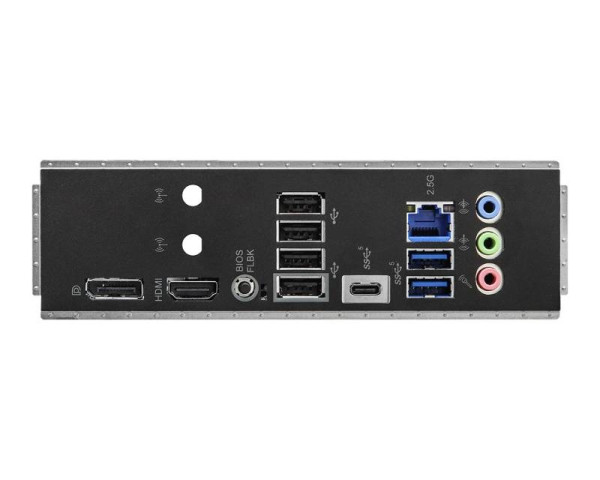

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C Port
    - 2 x USB 3.2 Gen1 Type-A Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
    - 2oz Copper PCB






  • Osnovne karakteristike
    • Čipset:
    • AMD B650
    • Grafika:
    • Upotreba grafike iz procesora
    • Procesorsko ležište (socket):
    • AMD AM5
  • Memorija
    • Memorijski slotovi:
    • 2
    • Ostale osobine:
    • Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO)
    • Maksimalna ukupna memorija:
    • 64GB
    • Podržane memorije:
    • Podržava DDR5 memorije do 6.400+ MT s (O.C.)
    • Tip memorije:
    • DDR5
  • Slotovi
    • PCI slot:
    • 3
    • PCI Express x16 slot:
    • 1x PCI Express 4.0 (x16 mode), 1x PCI Express 4.0 (x4 mode)
    • Ostali slotovi:
    • 3x M.2 slot, 4x SATA III
    • PCI Express x1 slot:
    • 1x PCI Express 4.0
  • Skladišni interfejs
    • Ostali skladišni interfejs:
    • 1 x Hyper M.2 Socket (M2_2)
    • RAID:
    • RAID 0, RAID 1, RAID 10
    • Napomena:
    • RAID 0, RAID 1 i RAID 10 podrška za NVMe SSD priključke, RAID 0, RAID 1 i RAID 10 podrška za SATA priključke
    • SATA priključci (ukupno):
    • 4
    • SATA priključci:
    • SATA III 6Gbps
  • Mreža
    • Model:
    • Dragon RTL8125BG
    • Žična mreža (LAN):
    • 2.5GBase-T (Gigabit)
  • Audio
    • Broj kanala:
    • 8 (7.1)
    • Napomena:
    • Nahimic Audio
  • Priključci na zadnjem panelu
    • HDMI priključci:
    • 1
    • Audio:
    • 3x 3.5mm
    • DisplayPort priključci:
    • 1x DisplayPort 1.4
    • RJ-45 (LAN):
    • 1
    • USB 2.0 priključci:
    • 4 (Tip A)
    • Ukupno USB C priključaka:
    • 1
    • USB 3.2 priključci:
    • 2 (Tip A) Gen1, 1 (Tip C) Gen1
    • Ukupno USB priključaka:
    • 7
  • Unutrašnji priključci
    • Naponski priključci:
    • 1 x 24 pin ATX Power Connector, 1 x 8-pin ATX 12V power connector
    • Napomena:
    • Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
    • USB 2.0:
    • 2 (podrška za 4 USB 2.0 porta)
    • USB 3.2:
    • 2 (podrška za 4 USB 3.2 Gen 1 porta), 1 (podrška za 1 USB 3.2 Gen 2 Tip C porta)
    • Ostali priključci:
    • 1 x Power LED and Speaker Header, 1 x Thunderbolt™ AIC Connector (5-pin), 3 x Chassis Water Pump Fan Connectors (4-pin), 1 x SPI TPM header, 1 x 4-pin CPU Fan conector
    • Audio:
    • 1x Front panel audio
  • Ostale karakteristike
    • Podržane tehnologije:
    • ASRock EZ Mode
  • Fizičke karakteristike
    • Format:
    • microATX
    • Fiksirajući otvori:
    • 6
    • Dimenzije:
    • 244mm x 226mm
  • Reklamacioni period
    • Reklamacioni period:
    • 36 meseci
  • Naziv artikla:
  • ASROCK B650M-HDV M.2 matična ploča
  • Naziv i vrsta robe:
  • AMD matične ploče
  • Uvoznik:
  • DS Computers
  • Zemlja porekla:
  • Dostupno na ambalaži proizvoda
  • Prava potrošača:
  • Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
