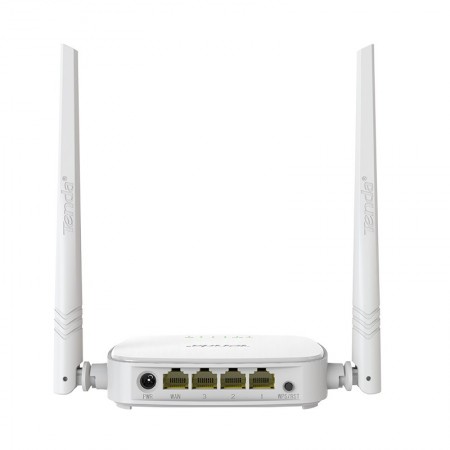

WLAN TENDA N301 2x5dBi AP/RPT

Hardware Features Protocols & Standards IEEE 802.3/3U IEEE 802.11n/g/b Interface 1 10/100Mbps WAN Port 3 10/100Mbps LAN Ports Antenna 2 fixed 5dbi Omni Directional antenas Button 1 Reset/WPS Button Dimensions (L*W*H) mm 127.4mm*90.5mm*26mm Wireless Features Wireless Link Rate IEEE 802.11n: up to 300Mbps IEEE 802.11g: up to 54Mbps IEEE 802.11b: up to 11Mbps Frequency Range (GHz) 2.412GHz-2.472GHz Working Mode Universal Repeater AP WISP WDS Bridge Wrieless Security 64/128bit WEP WPA-PSK WPA2-PSK WPS support Wireless Function Enable/Disable Wireless Radio Wireless Access Control Reception Sensitivity b mode:1M -92dBm@8% 11M -87dBm@8% PER; g mode:54M -72dBm@8% PER; n mode:72.2M -68dBm@8% PER; 150M -68dBm@8% PER; Software Features Internet Connection Type Dynamic IP?PPPOE?Static IP?L2TP?PPTP DHCP Server Built-in DHCP server DHCP Client List Address Reservation Virtual Server Port Forwarding DMZ Host Parental Control Client Filter Mac Filter Websites Filter Dynamic DNS No-IP dyndns VPN Pass-Through PPTP L2TP Other Advanced Function Bandwidth Control Mac Address Clone Remote Web Management System Log Others Package Contents Wireless N300 Easy Setup Router N301 Quick Installation Guide Ethernet cable Power adapter Resources CD Environment Operating Temperature: 0?~40? Storage Temperature: -40?~70? Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Certificates FCC, CE,RoHs
